SeriesHBVoltages200-1.100V line and inverter operationFrame size315 - 560Frame constructionCast IronPower output375 - 1.320kWDegree of protectionIP55, IP56, IP65, IP66Mounting arrangementsB3,...
| Series | HB | Voltages |
200-1.100V line and inverter operation |
| Frame size | 315 – 560 | Frame construction | Cast Iron |
| Power output | 375 – 1.320kW | Degree of protection | IP55, IP56, IP65, IP66 |
| Mounting arrangements | B3, B5, V5, V6, V1, B35 | Temperature class | 155 (F) according to 130 (B) or 180 (H) according to 155 (F) |
| Efficiency class | IE3 | Cooling method | IC411, IC410, IC416, IC418 |
| Number of poles | 2, 4, 6, 8, 10 | Certificates | CE |

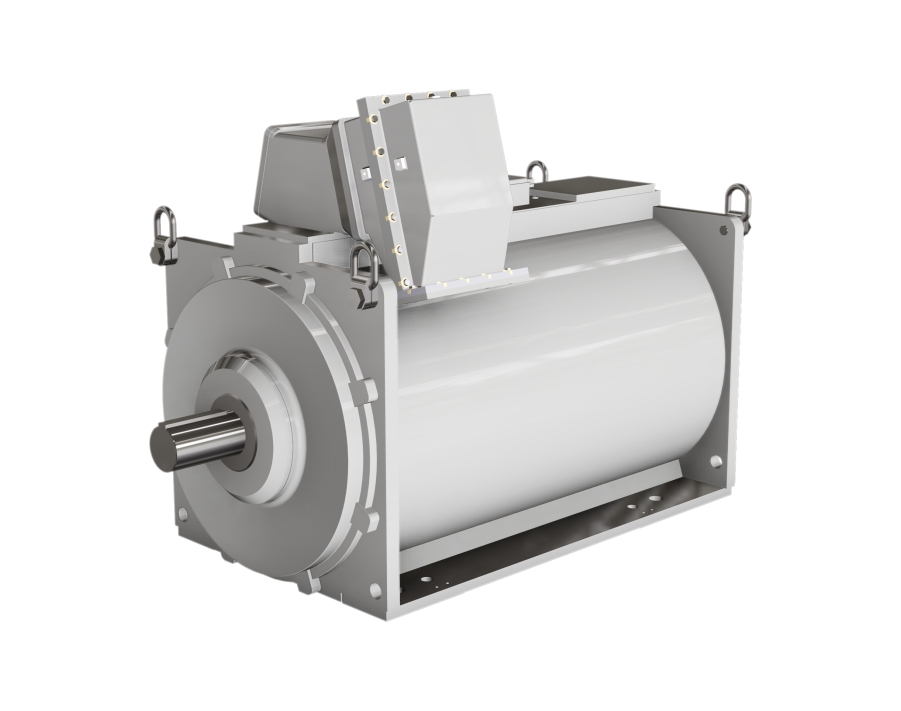

HB water cooled series are characterized by high effciency, low-noise operation, operational reliability, long service life and ease of maintenance. By use of special varnish systems with long-life protection, they are suitable for a wide variety of applications.
